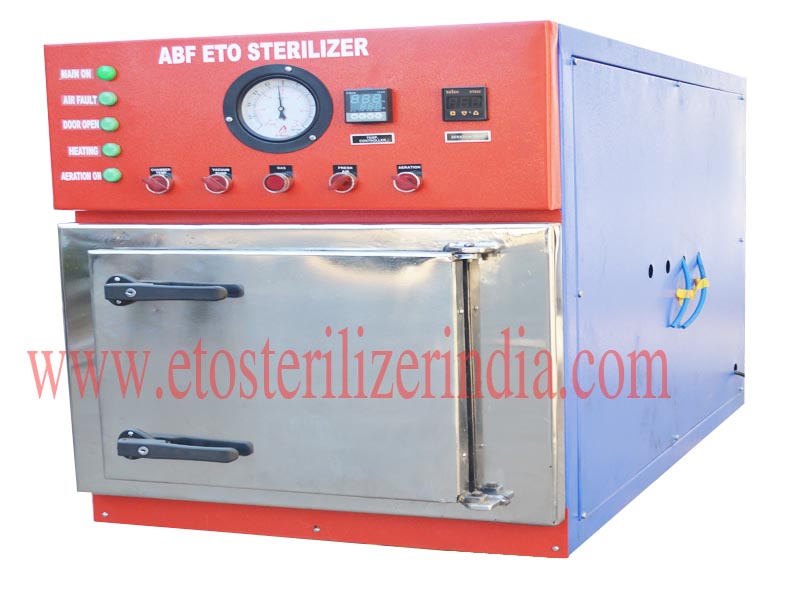

CATH LAB ETHYLENE OXIDE STERILIZER
100% eto cartridge is punctured only when proper negative pressure and humidity conditions are achieved in the chamber.
Easy to operate : cold cycle (37°c), warm cycle (55°c), 7 more user-defined cycles available.
Easy to handle : material can be easily loaded using the basket provided.
Installation: machine can be installed in-wall or placed on a free-standing rack.
Low cost per cycle :lowest operating costs compared to other available options.
scada : supervisor control and data acquisition software allows remote operation and monitoring of the machine
report : report generated by software in
1) detailed data format
2) single page graph
3) graph (trend) cab be printed
dependable plc-controlled electronic design provide accuracy.
touch screen hmi shows cycle status
relative humidity features continuously monitor maintain and document the correct humidity during the precondition phase.
continues temperature monitoring maintain temperature to within ± 3° c of the selected cycle temperature during exposure phase.
digital data back-up facility
audio alarm and visual display of error message on video screen and on computer screen too.
supervisory access code and password protection for prevention of unauthorized person.
low cost per cycle :lowest operating costs compared to other available options.
