Description

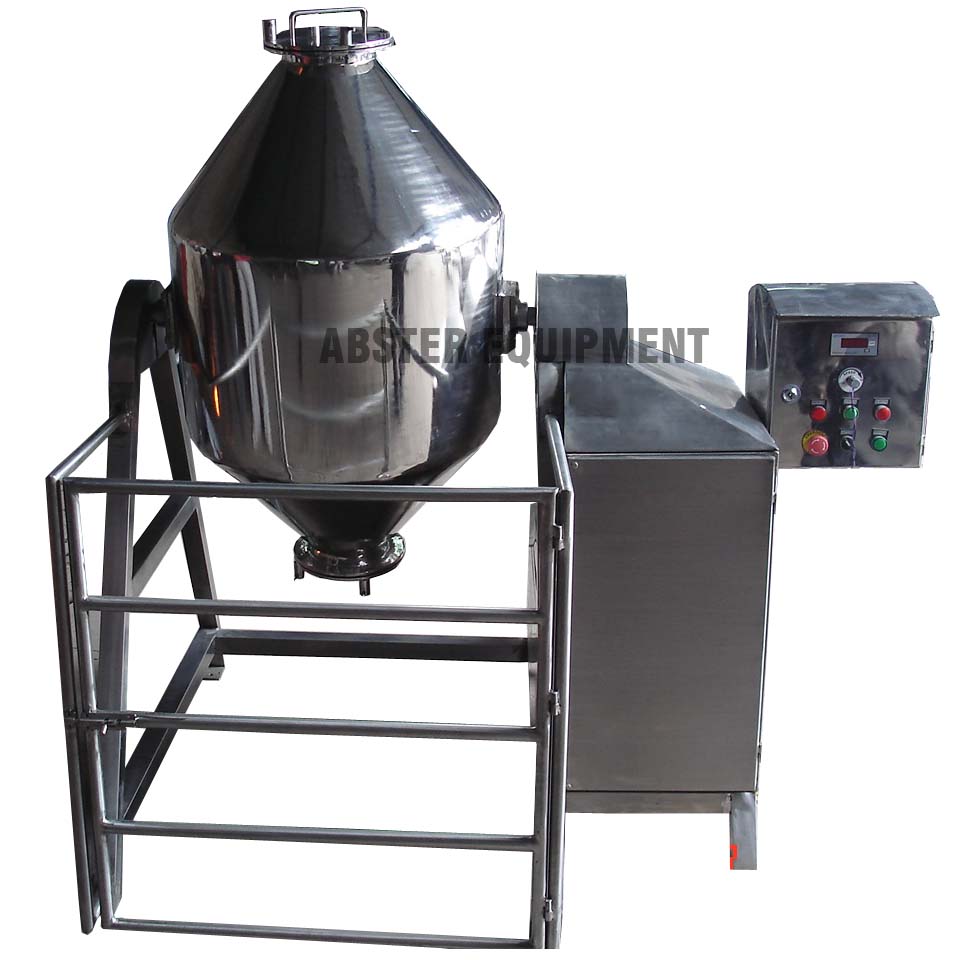

The "Abster" Double Cone Blender is an efficient and versatile machine for mixing dry powder and granules homogeneously. All the contact parts made out of stainless steel of required grade by customer. Two third of the volume of the Cone Blender is filled to ensure proper mixing. It can be used for Pharmaceutical, Food, Chemical and Cosmetic products etc.

Salient Features

  • The conical shape at both ends enables uniform mixing and easy discharge.
  • All contact parts are made out of Stainless Steel 304 or 316 quality material as required by customer.
  • Maximum care has been taken to ensure safe operation of the unit.
  • Manual rotating facility with hand wheel for inching. The same will be provided with Stainless Steel cover & limit switch. (In 200 Kgs. & above model)
  • Two nos. of safety road will be provided at back side. ( One LH side & one RH side )
  • Suitable size of butter fly valve at one end of the cone provided for material discharge & hole with openable cover provided at other end of the cone for material charging & cleaning.
  • One shaft with 04 nos. of fixed buffels with mirror polished provided inside the cone.
  • Cone will be mirror polished from the inside & outside & structure will be matt polished.
  • All moving parts covered with SS304 covers.
  • Safety guards made from SS304 pipes provided in front of the m/c with limit switch.
  • Panel fabricated from SS304 material with facility of three phase indication, D.O.L. starter, digital timer & Amp. Meter.
  • As per customer requirement machine will be provided with left side drive or with right side drive.
  • The conical shape at both ends enables uniform mixing and easy discharge.
  • All contact parts are made out of SS304/316(as per customer requirement) quality material.
  • Maximum care has been taken to ensure safe operation of the unit.
  • Worm reduction gear use for speed reduction.
  • Food grade rubber gasket will be used on both end of cone as well as in butterfly valve.
  • Inside & outside of the cone will be polished to the mirror finished.
  • General structure made out of SS304 and Polished to the matt / mirror finish ( as required by you ) in GMP Model.
  • All safety guards & covers made out of SS304 in GMP Model.
  • Hand wheel will be provided for manual tilting of cone.
  • Safety guards provided with limit switch to not start the machine when safety guards are not in proper position.

Double cone blender Capacity Table

Model No.Gross Capacity In Ltrs.Working Capacity In Ltrs.Overall Dimensions (in mm) (L) x (W) x (H)Discharge HeightCharge OpeningPower Supply
DCB-516 Ltrs10 Ltrs750 580 6503001000.5 HP
DCB-1035 Ltrs20 Ltrs1100 450 12003001000.5 HP
DCB-2580 Ltrs50 Ltrs1200 600 3004501501.0 HP
DCB-50150 Ltrs100 Ltrs1400 800 15004501502.0 HP
DCB-100300 Ltrs200 Ltrs1850 900 19004502002.0 HP
DCB-150470 Ltrs300 Ltrs2000 1100 20004502005.0 HP
DCB-200615 Ltrs400 Ltrs2100 1200 21004502006.0 HP
DCB-250770 Ltrs500 Ltrs2200 1300 22004502007.5 HP
DCB-3001000 Ltrs600 Ltrs2300 1400 23004502007.5 HP
DCB-4001340 Ltrs800 Ltrs2350 1800 23506002507.5 HP
DCB-5001500 Ltrs1000 Ltrs2400 1900 240080025010 HP
DCB-6502000 Ltrs1300 Ltrs2800 2100 2700800250/40010 HP
DCB-7502500 Ltrs1500 Ltrs3000 2200 2600800250/40010 HP
DCB-10003350 Ltrs2000 Ltrs3200 2300 3100800250/40015 HP
