Sigma Blade Rubber Mixer with Cooling Vaccum System

Sigma blade rubber mixer This machine widely used in soap, plastic, rubber, silicon, paint, printing ink, basoid, carbon, food stuff, medicine etc, Mixing Bowl and agitating valve are all made by stainless steel, The jacket of mixing bowl can be designed into electric heating, steam heating, steam heating or water cooling. Discharge ways as hydraulic flanging, screw extruder and botton discharge etc.

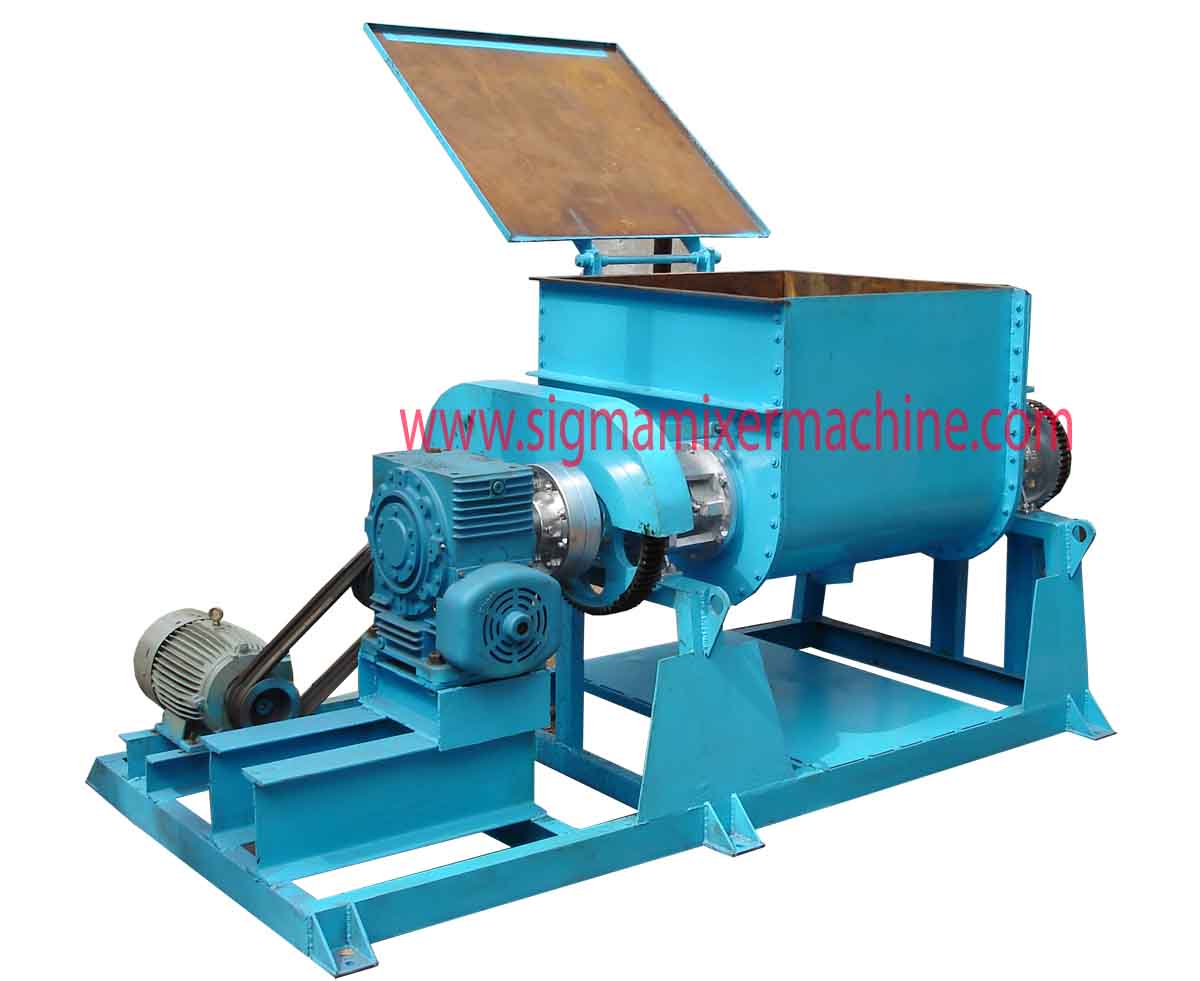

Sigma-Z-Blade-Silicone-Rubber-Chemical-Mixer-Dispersion-Kneader-Mixer

Fill up Inquiry Form

Z Blade Sigma Mixer

Sigma Z Blade Silicone Rubber Chemical Mixer Dispersion Kneader Mixer, Silicone Rubber Kneader, Sigma Blade Kneader, Z Blade Kneader, Rubber Mixer

Sigma Mixer Machine Structure/Description

Sigma Blade & Mixing Chamber, Heating & Cooling System, Tilting Mechnism, Control System, Pneumatic System, Driving System, Sealing

Application:

Silicone Rubber, Fiber Glass, BMC Mixing & Kneading.

Technical Parameter:

Parameter \ Model	1000L Kneader For Mixing
Total Volume	1000L
Effective Working Volume	600L
Motor Power	30 / 45KW-4P 380V/ 415V, 50HZ (CROMPTON, SIEMENS)
Motor Reducer	JS650 HRADENDED GEAR
Frequency Converter	55KW-4P CROMPTON
Discharging Material	Hydraulic Tilting ≥90O, One Set Hydraulic Station & Two Cylinder
Temperature	Room Temp.
Mixing Chamber Structure	W Shape Chamber, Jacket Design, Jacket Pressure Test 3 KG CM2. Boring Process Technology For Chamber, Consistent Gap Between Blade & Chamber Inner Surface, Have Better Mixing Effect.
Contact Parts With Material	SUS304H Stainless Steel
Inner Tank	SUS304H Stainless Steel
Outer Tank	IS 2062 / IS 2002 MILD STEEL
Side Plate	IS 2062 / IS 2002 MILD STEEL Stick Welding, 4mm SUS304 Stainless Steel.
Blade Process Technology	Sigma Blade, Cast Steel Integral Casting, Optimized Spiral, Lathing, Grinding & Static Flat Test.
Stainless Steel Welding Layer	Second Shot Blast Treatment To Remove Surface Oxide Layer, Precise Welding 5mm SUS304H Stainless Steel.
Blade Edge	Welding 14mm SUS304H Stainless Steel, Cutting Face Special Form Thickening Processing.
Blade & Chamber / Side Plate Clearance	3±0.5mm
Fast Blade Speed	0-39R/Min
Slow Blade Speed	0-25R/Min
Lid Opening	Hydraulic Driving
Lid Material	6mmSUS304 Stainless Steel Circular Lid, 30mm Stainless Steel Frame.
Blade Support Bearing	Self-Aligning Ball-Bearing
Gear Box	Gear Box
Shaft Seal	Innovative Design, Stainless Steel Lining Plus O Teflon Ring & Teflon Weaved Gnarled Combined Seal.

V. Highlights:

Overall Structure	Adopts Removable Type Connection Design, No Convenient Welding Die Parts. All Connecting Screw & Nut Are Steel Material To Avoid Aging Break.
Controller	Automatic Control System: Status Display & Function Of Voltmeter, Kneading Ampere Meter, Start, Stop, Frequency Converter Forward Rotating, Reverse Rotating, Hydraulic Driving Tilting Materials & Restoration, Hydraulic Opening & Closing Lid, Emergency Stop, Electric System & Operation Chain Design, Controlling Cabinet Surface Electrostatic Plastic-Coating Treatment
