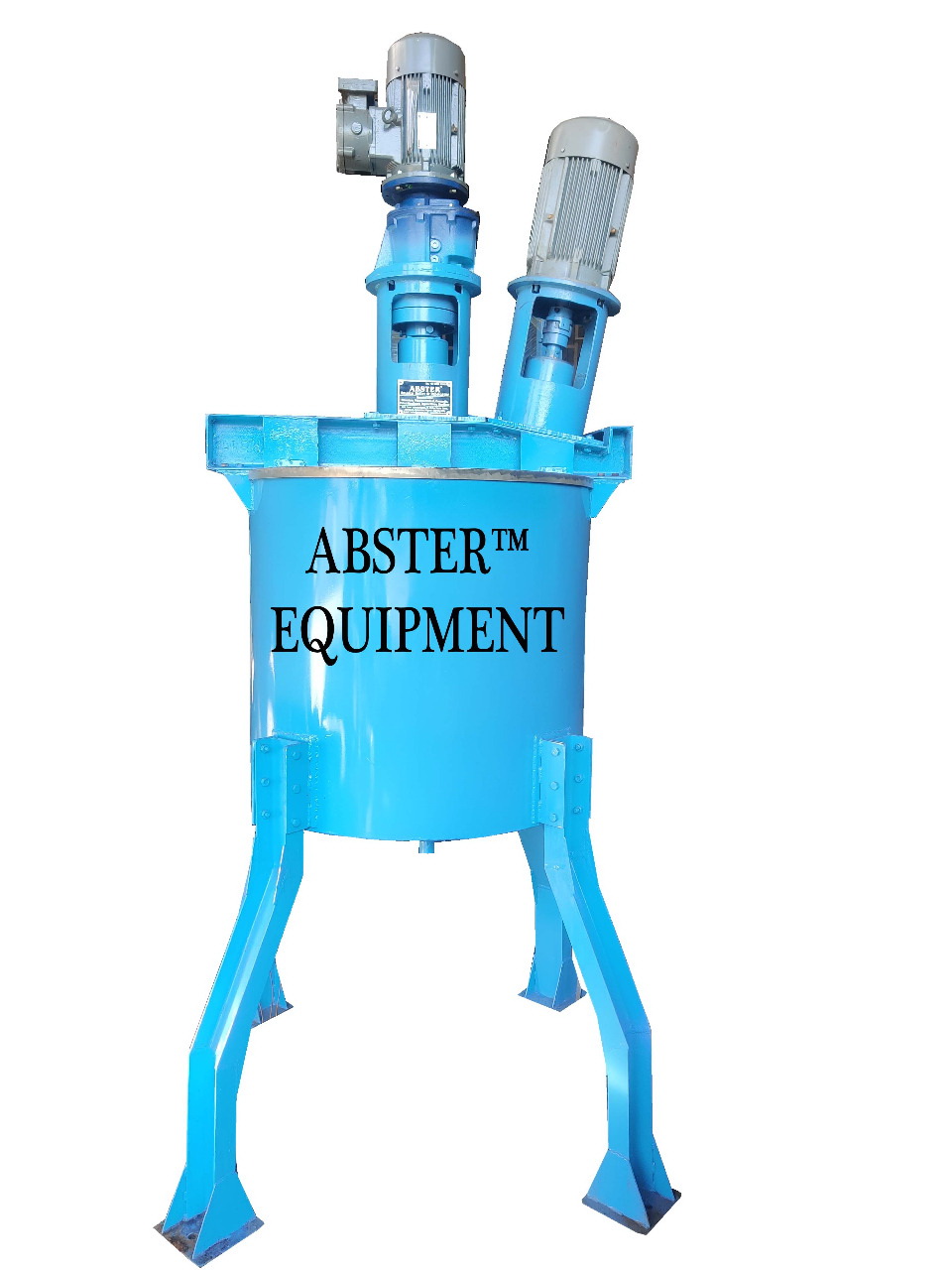

The Twin Shaft Disperser Mixer chiefly consists of a centrally located shaft fitted with a butterfly blade which moves and mixes the mass around the vessels. In a Twin Shaft Disperser Mixer, the process of dispersion is carried out by the centrally located shaft, and the low speed shaft is responsible for the mixing mechanism. A second variable speed disperser shaft with a cow less impeller blade operates in short intervals. The improvement of the door shaft and the connecting rod mechanism guarantees that the door's angle is greater than 90 when opening and locked when closed with improved sealing and no leakage.
Twin Shaft Disperser finds applications in Paint Industry, Automotive Coatings, Dye Stuffs, Carbon Dispersions, Printing Inks, Silicone Coatings, Paper Coatings, Photographic Inks, Pigments Dispersions, Inks, etc. Twin Shaft Disperser is widely used for manufacturing of materials of high viscosity such as paints, inks, polyester putties, sealants, coatings etc.
These dispensers feature hydraulic lifting, chain block lifting and wire rope lifting arrangements., Twin shaft disperser are avialable in differant capacity.
Product Code / Model No. | Tank / Full Cap. [Lit] | Working / Batch Cap. [Lit] | Disperser Motor (Rating) HP | Disperser RPM | Disperser Blade Type | Mixer MOTOR RATING (hp) | Mixer RPM | Mixer Blade Type | Hyd. Motor HP | Lifting & Lowering Arrangement |
TSD-200 | 250 | 200 | 7.5 | 1440 | saw tooth /cutter/ high vaned / high shear / cowles Blade | 10 | Up to 70 | Butterfly Blade or Anchor Blade | 1.5 | Hydraulic Operated |
TSD-500 | 625 | 500 | 10 | 1440 | saw tooth /cutter/ high vaned / high shear / cowles Blade | 15 | Up to 70 | Butterfly Blade or Anchor Blade | 1.5 | Hydraulic Operated |
TSD-1000 | 1250 | 1000 | 25 | 1440 | saw tooth /cutter/ high vaned / high shear / cowles Blade | 40 | Up to 70 | Butterfly Blade or Anchor Blade | 2 | Hydraulic Operated |
TSD-1500 | 1800 | 1500 | 25 | 1440 | saw tooth /cutter/ high vaned / high shear / cowles Blade | 40 | Up to 70 | Butterfly Blade or Anchor Blade | 2 | Hydraulic Operated |
TSD-2000 | 2400 | 2000 | 50 | 1440 | saw tooth /cutter/ high vaned / high shear / cowles Blade | 75 | Up to 70 | Butterfly Blade or Anchor Blade | 3 | Hydraulic Operated |
If any special requirement regarding above product pls. give the detail to fulfill your requirement. |
