Sigma Mixer in Pune

You are here:

Sigma Mixer in Pune

Sigma Mixer Machine

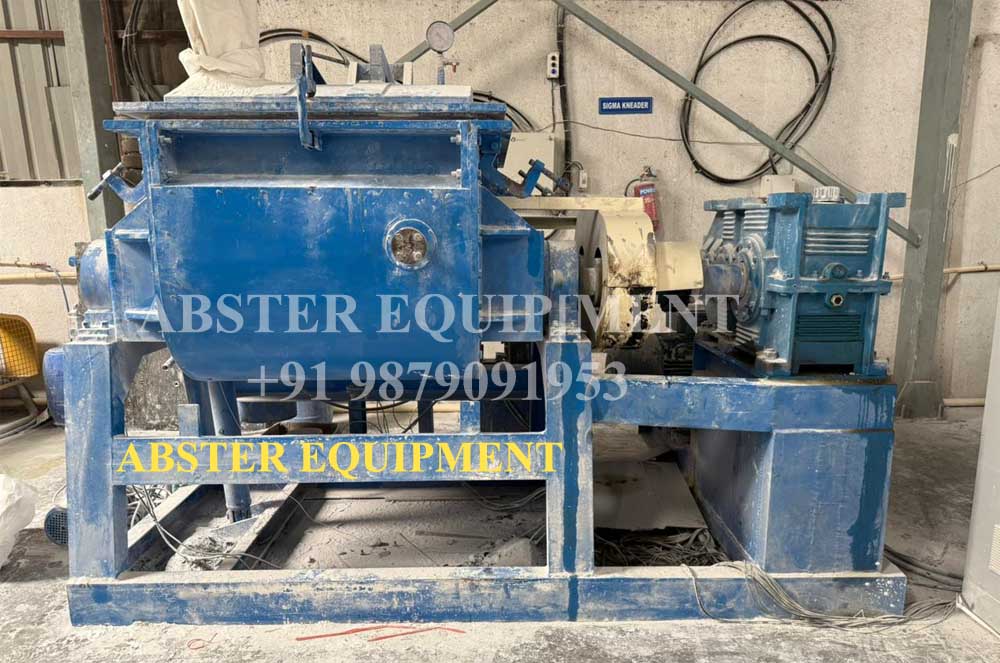

Sigma Mixer in Pune


Sigma Mixer Description


Abster is hte best manufacturer of Sigma Mixer in Pune Heavy duty, strong built Sigma mixer in Pune to produce uniform mixing and kneading heavier viscosity materials. The Sigma mixture is suitable for many applications like mixing, kneading, Grinding, dispersion, drying etc. The sigma mixer have application to produce highly viscous materials like different kinds of Chemical, Dyes & Pigments, Paint, Polymers Plastic, Putties, Plastic, Pharmaceuticals, Printing ink, stiff pastes, adhesives, polyester Compounds, flush colors, brake lining compounds, resign, soap, PVC coatings, Rubber compounds, Confectionery, Magnetic Tape Coatings, Ceramic, Carbon Black, doughs,, Food Products, Fiber Glass, Grease, Lead Storage Battery, Soap & Detergent etc. The Sigma Mixer shaft machined on self centering steady rest to get acuuracy of the machine.

Sigma Mixer Kneader Machine is uses for uniform mixing of semi solid materials. Machine consist of U trough bowl with two ‘Z’ shape blades each rotates in opposite direction for proper mixing of material. Machine equipped with suitable capacity motor & gearbox decided as per characteristics of the product & process. Equipment is provided with Jacket arrangement for heating or cooling applications. We manufacture Sigma Mixer Kneader capacity ranging from 5 kgs. up to 5000 kgs. We re also supplying sigma mixer in UAE


Sigma Mixer Operating

Sigma mixer, the tangential action of mixing and kneading is thoroughly obtained by 'Z' (SIGMA) shaped kneading blades, which rotates very accurately at different speed towards each other causing product to be transferred from blade to blade. Discharge of the mixed product is achieved by tilting the container or through the valves at the bottom or by means of an extrusion screw below the container if provided


Salient Features

  • Sigma Mixer is a Batch type Mixer
  • In sigma mixer, Mixing Trough and Blades are fabricated from mild steel, stainless steel 304 and 316 grade.
  • Blades of sigma mixers are designed to obtain thorough mixing of high viscosity materials.
  • Sigma Mixers Blades are machined to keep minimum equal gap between through walls and blades.
  • Sigma mixers have fixed with Heavy-duty gears to sustaion of load of Kneading.
  • Shaft sealing into the stuffing boxes is provided by Teflon Chevron Rings / PTFE breaded gland rope to prevent leaking from blade ends.
  • Safety Guards and Grills are provided for maximum safety in sigma mixers.
Double arm sigma mixer
Sigma Mixer Machine
sigma-mixer-with-extruder-screw

Sigma Mixer Options

  • GMP / Non GMP / models.
  • Discharge in sigma mixers is done by tilting container / bottom sliding valves / bottom gates / flush bottom gate valves.
  • Tilting in sigma mixers is done by hand liver / hand wheel with lead screw / electrical arrangements / hydraulic systems.
  • Lifting of lead either manually, with help of counter weights or hydraulically.
  • 'Z' Type Spiral blade / Naben / double naben blades to circulate hot / cold water in cases of heavy masses.
  • Jacketed shell for heating or cooling by steam, oil, water etc. with fiber glass insulation over the jacket.
  • Spray system for liquid addition / gas purge.
  • Flame proof / Non-flame proof electrical controls.


Technical Specification

Model Capacity – Litres Motor (H.P.)
Working Capacity Gross Capacity General Heavy Duty
ASM – 50 50 80 5 H.P. 7.5 H.P.
ASM – 75 75 110 7.5 H.P. 10 H.P.
ASM – 100 100 150 10 H.P. 15 H.P.
ASM – 150 150 200 15 H.P. 20 H.P.
ASM – 200 200 300 20 H.P. 25 H.P.
ASM – 400 400 550 30 H.P. 40 H.P.
ASM – 500 500 750 40 H.P. 50 H.P.
ASM – 750 750 1150 50 H.P. 60 H.P.
ASM – 1000 1000 1500 60 H.P. 70 H.P.
ASM – 1500 1500 2100 75 H.P. 80 H.P.
ASM – 2000 2000 2600 80 H.P. 90 H.P.
ASM – 3000 3000 3800 100 H.P. 120 H.P.



* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
