Mixing Vessel CGMP

You are here:

Mixing Vessel CGMP


Storage Material: CHEMICAL,WATER, OIL
Material Grade: SS304-SS316-MS2062
Capacity: 20-100 L, 500-1000 L, 1000-10000L, >10000 L, 100000 L
Material: Stainless Steel, Mild Steel
Max Design Pressure: 10-15 bar, 15-20 bar, 20-30 bar, 30-40 bar, >40 bar
Features: Insulated, Vertical Orientation, Horizontal Orientation, High Temperature Resistance, Level/Pressure Indicator

Request quote

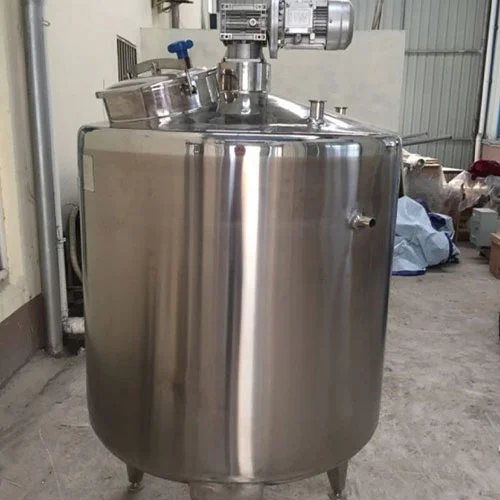

Mixing Vessel from 100 liters to 20000 liters capacity

manufacture stainless steel mixing vessels and ASME vessels for Pharmaceuticals, Biotech, Cosmetics and other liquid processing industries. We provide highest standard of Factory Acceptance Testing with full documentation package with weld inspection report.


Model Working volume(L) The actual volume(L) Cover power Mpa (for steam) Figure measure
Mixing power(KW)
MVS100 100 125 ≤0.3Mpa 1700× 1200× 1850 2.2
MVS200 200 265 ≤0.3Mpa 1800× 1350× 2000 2.2
MVS300 300 400 ≤0.3Mpa 2000× 1400× 2100 3
MVS500 500 625 ≤0.3Mpa 2200× 1400× 2500 3
MVS1000 1000 1250 ≤0.3Mpa 2500× 1700× 2500 4
MVS1500 1500 1750 ≤0.3Mpa 2500× 1850× 2500 5.5
MVS2000 2000 2600 ≤0.3Mpa 2750× 1910× 3100 5.5
MVS3000 3000 3600 ≤0.3Mpa 3000× 2100× 3500 7.5
MVS4000 4000 4800 ≤0.3Mpa 3000× 2300× 3600 8.5
MVS5000 5000 5800 ≤0.3Mpa 3200× 2400× 3950 11

Stainless Steel Reactor for API, Chemical & Pharma


The tank is capable of efficiently, swiftly, and evenly spreading one or more phases to another continuous phase, even if the phases are mutually insoluble. The material is subjected to intense mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, and impact in the tight space between the stator and the rotor due to the high tangential speed and high-frequency mechanical forces created by the rotor’s high-speed rotation. A blending of tearing and turbulence. As a result of the action of the corresponding mature process and an adequate number of additives, the incompatible solid phase, liquid phase, and gas phase are evenly and finely dispersed and emulsified, and the high-frequency cycle reciprocates to produce a stable high-quality product.

Stainless steel and MS mixing tanks are widely used in coatings, pharma industry, construction materials, chemicals, pigments, resins, food, scientific research, and other sectors. The equipment can be built of stainless steel 304 or 304L depending on the requirements of the users’ goods; moreover, heating and cooling devices are optional to fulfil the various demands of production and process. Jacket electric heating and coil heating are the two heating modes available. The equipment has an acceptable structural design, innovative technology, and durability, as well as easy operation and ease of use. It is an ideal processing equipment that requires little investment, operates quickly, and yields a high return.

Equipment Structure

  • Mixing tank mainly consists of tank body, cover, agitator, supporting feet, transmission device and shaft seal device.
  • Tank body, cover, agitator and shaft seal can be made of carbon steel, stainless steel and other materials according to specific requirements.
  • Tank body and cover can be connected by flange seal or welding. Also they could be with holes for purpose of feeding, discharging, observation, temperature measurement, manometry, steam fractionation and safety vent.
  • Transmission devices (a motor or a reducer) are installed on top of the cover and the agitator inside the tank is driven by stirring shaft.
  • Shaft sealing device can be used machine seal, packing seal or labyrinth seal, they are optional according to customer’s need.
  • Agitator type could be impeller, anchor, frame, spiral type, etc.
  1. Available from 100 Ltrs. to 20000 Ltrs. capacity.
  2. cGMP construction available on demand
  3. MOC shall be MS / SS 304 / SS 316 as per clients' requirement.
  4. Available in different options of top & bottom ends like flat, dished, conical
  5. Available in plani as well as steam / hot water jacketed.
  6. Jacketed vessels available in different jacket option i.e simple jacket, limpet jacket, dimpled plate jacket.
  7. HOT , COLD or HOT & COLD ( dual ) insulation can be provided as per clients' requirement.
  8. Different agitator design to suit process requirement.
  9. Tailor made construction also available.
  10. Available in LUGS or LEGS mounting position.

Custom made Homo Stainless Steel Mixing Tank for chemical reaction

Stainless steel homo mixer tank is mainly used for chemical reaction for mixing, blending and reaction purpose. It either be dished ends structure, or flat top structure. Optional for level gauges, temperature gauges and display device.

Heating Mix Stainless Steel Mixing Tank With manhole , sight glass

Stainless steel heating mix tank is mainly used for chemical reaction for mixing, blending and reaction purpose. It either be dished ends structure, or flat top structure. Optional for level gauges, temperature gauges and display device.

Heat exchanger Stainless Steel Mixing Tank / chemical mix tank corrosion resistant

Chemical mixing tank is a container with an agitator for mixing, dispersing and reaction of different materials in chemical production. It is widely used in chemical, food, pharmaceuticals, resin, coating, paint, printing ink industry. It can be either dished end type or flat lid type, with level gauges, temperature detectors and display device. Usually, it has manhole, sight glass, feeding inlet, discharging outlet and spare openings. For different production process and reaction materials, we will have different designs and configurations, mainly displayed on its shape, overall size, sanitary requirement, seal effect, with condenser, heat exchanger, pressure sensor, temperature sensor and load cell. Various agitators and discharging modes for option.

Stainless Steel Chemical Reactor with process demand by customer as per we fabricate Jacketed vessel, limpet coil reactor, dimple type reactor, high pressure reactor for chemical processing or chemical process reactor , Reactor with Mechanical seal , Reactor with Limper Coil , Reactor with Jacket Stainless Steel, reactor for pharmaceutical, agricultural, fertilizer, petrochemical, and power industries which commonly use salts, acids and other chemicals .

  • We offered separately for valves, fittings, pipe and automation as per customer demand / requirement.
  • Our reactor vessel shall be fabricated as per cGMP guide line with Different types of agitator design.
  • Our stainless steel Mixing Vesssel CGMP reactor vessel offer Registered with leading consultants and third party inspection agency / FAT.
  • Reactor with Jacket and Limpet type of rector will be designed for cooling and heating during exothermic or endothermic reactions.
  • Stainless Steel Reactor with GMP Standard range of Equipments manufacturing for Pharmaceutical industry. With special mirror finish from 220 grit to 440 grit, proper smooth welding all angles and line, flush grinding and Insulation with mirror finished S.S cladding.
  • Stainless Steel Reactor or Industrial Reactor with direct drive design for the agitator , with variable drive – VFD option to vary the RPM of the drive as per customer needed .

Reactor for API, Suitable for resins, adhesives, paint, cosmetics, reactor for pharma and other chemical production. Reactor with Stirring, mixing, heating, cooling, pumping vacuum, so that the material to react, polymerization. Stainless Steel Chemical Reactor and Reaction kettle is generally composed of a kettle body, a driving device, a stirring device, heating device, a cooling device, and a sealing device.

Capacity : 500 LITRES TO 40KL Reactor with Bottom Entry Agitator, Reactor with Cooling Coil ,Jacketed Reactor / Insulation / SS Cladded Reactors , Reactor with Limpet and Jacket , Limpet Reactor , SS 316 – Reactor with Double Mechanical Seal and Stainless steel pressure vessels or reactors to meet our customer’s application with requirements as per ASME Code stainless steel reactor design and stainless steel reactor vessel.
