V Shape Blender
Sigma Mixer Machine


V Cone Blender (V type mixer) including V shape blender is efficiently designed for rapid blending and mixing operations at low speed. Rotary, tumble type blender with manholes for product loading, cylindrical “V” curves allow easy access to the internal areas for better cleaning. The tropical “V” shaped allows for higher shear of mixing without attrition and particle regeneration, leading to shorter Mixing/Blending time. Ideal for fragile granules and in formulation where fine percentages need to be highly controlled. Due to frugal and simple design these blenders are maintenance engineer’s delight. Unit can also be retrofitted with conical adapters with butterfly valve for clamping of IPC for dust free, easy loading and discharge. We provide extended support for V blender parts and V cone blender validation. Adinath is manufacturer of V cone blender in capacity ranging from 5 liters to 5000 liters. Our range consist >R&D V Cone Blender and Production Scale V Cone Blender.



Exclusive Features of V Cone Blender

  • Compact model.
  • Capacity available from 5 Liters to 5000 Liters.
  • The conical shape at both ends enables uniform mixing and easy discharge.
  • All contact parts are made out of Stainless Steel 316 / 304 / MS quality material as per requirements.
  • Two nos. of safety road will be provided at back side. (One LH side & one RH side)
  • One shaft with 3 / 4 nos. of fixed baffels provided inside the cone.
  • All moving parts with suitable covers.
  • Safety guards provided with limit switch to not start the machine when safety guards are not in proper position. (optional)
  • Control Panel having three phase indication, D.O.L. starter, digital timer & Amp. Meter. (optional)
  • The conical shape at both ends enables uniform mixing and easy discharge.
  • Worm reduction gear use for speed reduction.
  • Food grade rubber gasket will be used on both end of cone as well as in butterfly valve.
  • General structure made out of SS 304 and Polished to the matt/mirror finish (as required by you).

Working Principle
of V Cone Blender

The V shape blenders have long two corner of product container for more rubbing and tumbler effect to the material for fast and homogenizing mixing. It can perform homogenously dry mixing of free flowing powders, granules requiring low shearing force, Mixing and Blending of particles with rapid intermixing of particles irrespective of varying specific gravities. The material is loaded into the double cone blender drum. The double blender is tumbles the material in the container and spread out. The mixing is achieved in 5 to 15 minutes with better homogeneity.

Technical Specification
of V Shape Mixer

Model No. Gross Capacity approx. Working Capacity approx. Overall Dimensions (in mm) (L) x (W) x (H) approx. Discharge Height Charge Opening Power Supply
VCB-5 16 Ltrs 10 Ltrs 750x580x650 300mm 100mm 0.5 H.P.
VCB-10 35 Ltrs 20 Ltrs 1100x450x1200 300mm 100mm 0.5 H.P.
VCB-25 80 Ltrs 50 Ltrs 1200x600x300 450mm 150mm 1.0 H.P.
VCB-50 150 Ltrs 100 Ltrs 1400x800x1500 450mm 150mm 2.0 H.P.
VCB-100 300 Ltrs 200 Ltrs 1850x900x1900 450mm 200mm 2.0 H.P.
VCB-150 470 Ltrs 300 Ltrs 2000x1100x2000 450mm 200mm 5.0 H.P.
VCB-200 615 Ltrs 400 Ltrs 2100x1200x2100 450mm 200mm 6.0 H.P.
VCB-250 770 Ltrs 500 Ltrs 2200x1300x2200 450mm 200mm 7.5 H.P.
VCB-300 1000 Ltrs 600 Ltrs 2300x1400x2300 450mm 200mm 7.5 H.P.
VCB-400 1340 Ltrs 800 Ltrs 2350x1800x2350 600mm 250mm 7.5 H.P.
VCB-500 1500 Ltrs 1000 Ltrs 2400x1900x2400 800mm 250mm 10 H.P.
VCB-650 2000 Ltrs 1300 Ltrs 2800x2100x2700 800mm 250/400 mm 10 H.P.
VCB-750 2500 Ltrs 1500 Ltrs 3000x2200x2600 800mm 250/400 mm 10 H.P.

* Power voltage can be adjusted as per customer's domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.


Send Inquiry


Double arm sigma mixer
Sigma Mixer Machine

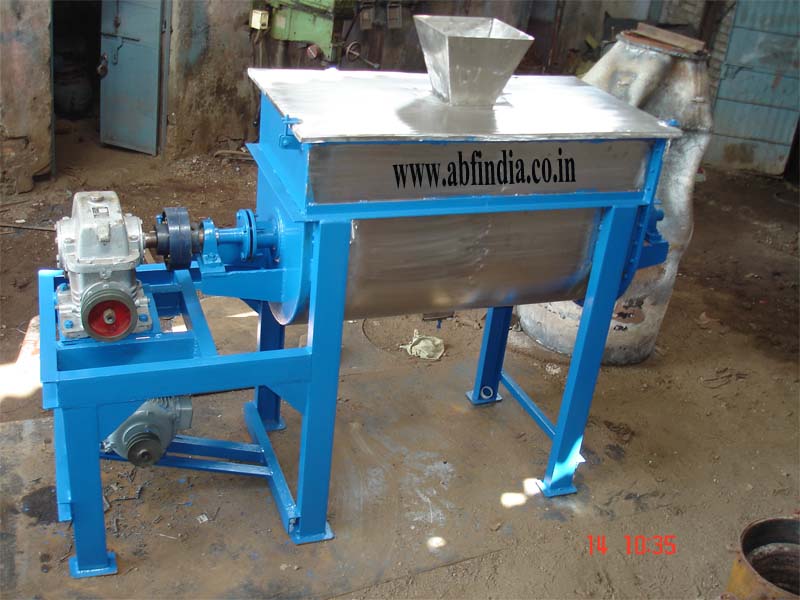

Find Here the Artical Related To Ribbon Blender Working Principle
