DOUBLE HELICAL RIBBON BLENDER

You are here:

Double Helix Ribbon Mixer Machine For Powder Mixing

Double Helical Ribbon Blender

Sigma Mixer Machine


Description


Double helix ribbon mixer machine for powder and liquid mixing is widely used in mixing dry powder, granule, particle, liquid and paste materials with low viscosity. Horizontal double helix mixer with high speed crushing choppers is based on horizontal ribbon blender by setting several units of high speed chopper blades on side of the U shaped Blending barrel.

A ribbon blender consists of a horizontal U-shaped trough containing a rotating double helical ribbon agitator inside. The horizontal agitator shaft is located in the center of the trough on which the helical ribbons are provided. A sealing arrangement is provided for the area where the shaft exits the container to ensure that material does not travel from the container to the outside and vice versa. The blender assembly along with the drive system components such as the motor, gearbox, couplings and bearing supports are mounted on a supporting frame.

Consisting of a combination of inner and outer helical ribbons, the ribbon agitator is referred to as the "double" helical ribbon agitator. The external ribbon flights move the material from the ends to the center during the blending operation, while the inner ribbon flights move the material from the center to the ends. Because of the rotational motion of the ribbons, radial mixing is accomplished. Axial movement of the material along the horizontal axis of the blender stems from the disparity in peripheral velocities of the outer and inner ribbons. As a consequence of the radial and counter-current axial motion, homogeneous blending with 90 to 95 percent or better homogeneity is achieved within 15 to 20 minutes of start-up. The biggest effect on the mixing efficiency of the ribbon blender is the solid particle size and its bulk density. As compared to ingredients with variance in these properties, ingredients with similar particle size and bulk densities tend to blend faster.

The material loading in the blender normally takes place by means of nozzles or feed-hoppers located on the blender 's top cover. The ribbon blender 's working capacity ranges from 40 to 70 percent of its total volumetric capacity. The product is discharged from a discharge valve located at the bottom of the trough after blending. Depending on the size of the blender, more than one discharge valve may be provided. The valve operation may be manual or pneumatically actuated. In the ribbon blender, obtaining 100 percent discharge is practically difficult. The amount of hold up after discharge in the blender depends on the material properties, the clearance between the ribbon flight's outer edge and the blender container's inside wall. Depending on the application, a clearance of 3 mm to 6 mm is usually maintained.

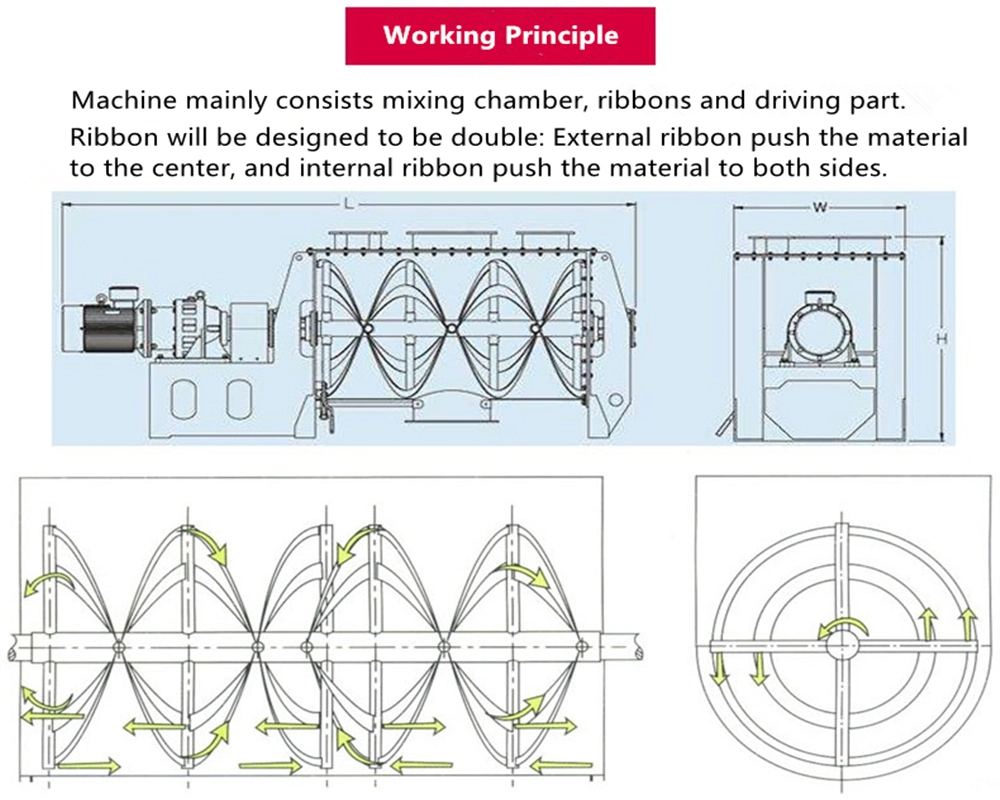

Stainless-Steel-Horizontal-Double-Helical-Ribbon-Mixing-Machine-for-Blending-Compound-Fertilizer

Principle and features:

The vortex outer ribbon combined with rotating direction drives material from two sides to the centre, meanwhile inner ribbon drives material from centre to two sides, and the high speed chopper blades could break and disperse the lumps and blockings.

Therefore horizontal double ribbon mixer with crushing chopper blades can especially meet the demands of various kinds of blending powdery materials which may easily gather together during the mixing process. Horizontal ribbon blender machine with high speed choppers is your best choice for mixing and blending powdery materials, liquid and powder.

Double helical ribbon mixer for powder mixing and liquid spray system is featured with shorter mixing time and better blending uniformity.

Ribbon Blender Application



Ribbon Blender manufacturers with Horizontal ribbon blender for fertilizer, pigment, chemicals, colors.

Pharmaceuticals: capsule, tablet, granule.

Food: flour, creamer, sugar ,Cosmetics & Toiletries: talc powder, foundation powder.


  • 500Kgs. Sigma Mixer

  • 500 Liter Sigma Mixer

  • 500 Liters Sigma Mixer

  • Sigma Mixer Extruder

  • Double Sigma Mixer

  • Sigma Mixer

  • Bubble Gum Sigma MIxer

  • Chewing Gum Sigma Mixer

  • Stainless Steel Sigma Mixer

  • Z-type Sigma Mixer

  • Extruder Sigma Mixer

  • Double Arm Sigma Mixer


Ribbon Blender manufacturer


The ribbon blender machine comprises of a horizontal U shaped trough and a specially developed a double helical, fabricated ribbon agitator that rotates within the trough. The machine design is based on a proven agitator technology that efficiently achieves triple mixing action and ensures fast and efficient blending.

The equipment dimensions and design of the operating parts are well balanced to provide balanced material movement within the container and avoids dead spots while rapidly discharging the product.

The ribbon mixer machine is made with user friendly features such as wear resistance, corrosion resistant, vacuum filling and discharge arrangements, special shaft seals, heating and cooling jackets and in a variety of sizes and models for specialized applications. The operating capacity of the ribbon blender mixer ranges from 100 liters up to 8000 liters capacity, and it is constructed with stainless steel for maximum durability.

Benefits of the Ribbon Blender Equipment

  • It is developed in a sanitary design ,heavy gauge stainless steel

  • The bearings are mounted on laterns outside of the mixing containers to avoid any possible contamination.

  • Wide range of arability

  • Feeding through a hopper mounted on the top of a blender

  • Achieves relatively short mixing time

  • Good mixing with attrition and improved mixing efficiency

  • Batch or continuous mixing and they have low maintenance costs


Ribbon Mixer Operation


The machines are widely used for homogenous mixing of dry granules and powders and are thus may also act as powder mixers, spice mixers and spice blenders.

As the agitator rotates in the ribbon blender, the material is tumbled and carried radically around the inside of the blender. The pitch of the outer ribbon directs the material towards the discharge opening. The inner ribbon which also has an opposing pitch moves this material away from the discharge opening. This alternating movement creates very efficient mixing operation.

Applications of the Ribbon Blender


The equipment is used in the food and ingredients infant formula, cocoa mix, instant salad dressing, cake mixes, spices, seasonings, flavorings, gelatin and many other food materials.

Industrial Mixers for Talcum Powder

The talcum powder is the highly refined, powdery form of soft earth mineral. It is one of the most widely used products known as the baby powder. The industrial mixers for talcum powder are high shear mixers, able to achieve a short mixing time with attrition of the product.

Pharma Powder Mixing Equipment

There is a wide range of applications of the chemical powder mixing equipment and the choice of mixer may be determined by various factors. The ribbon blender mixer has emerged as a leading mixing technology able to homogenize the bulk powder materials, improve powder flow characteristics, , quality , consistency and improve efficiency in pharmaceutical tableting process. It is therefore widely used as a food ribbon mixer, lab mixers for chemical and cosmetics mixers to effectively blend powders and granules. Paddle blenders also utilize the same technology, as they can mix solids with solids, as well as solids with high or low percentages of liquids to produce smooth paste or slurries.
